Article Sidebars & Content Widths
Overview
This article is for the Version 2 of the article layout. If you are an older user, you might still be using the Version 1 layout. To learn how to switch to Version 2 click here.
Features Wizards

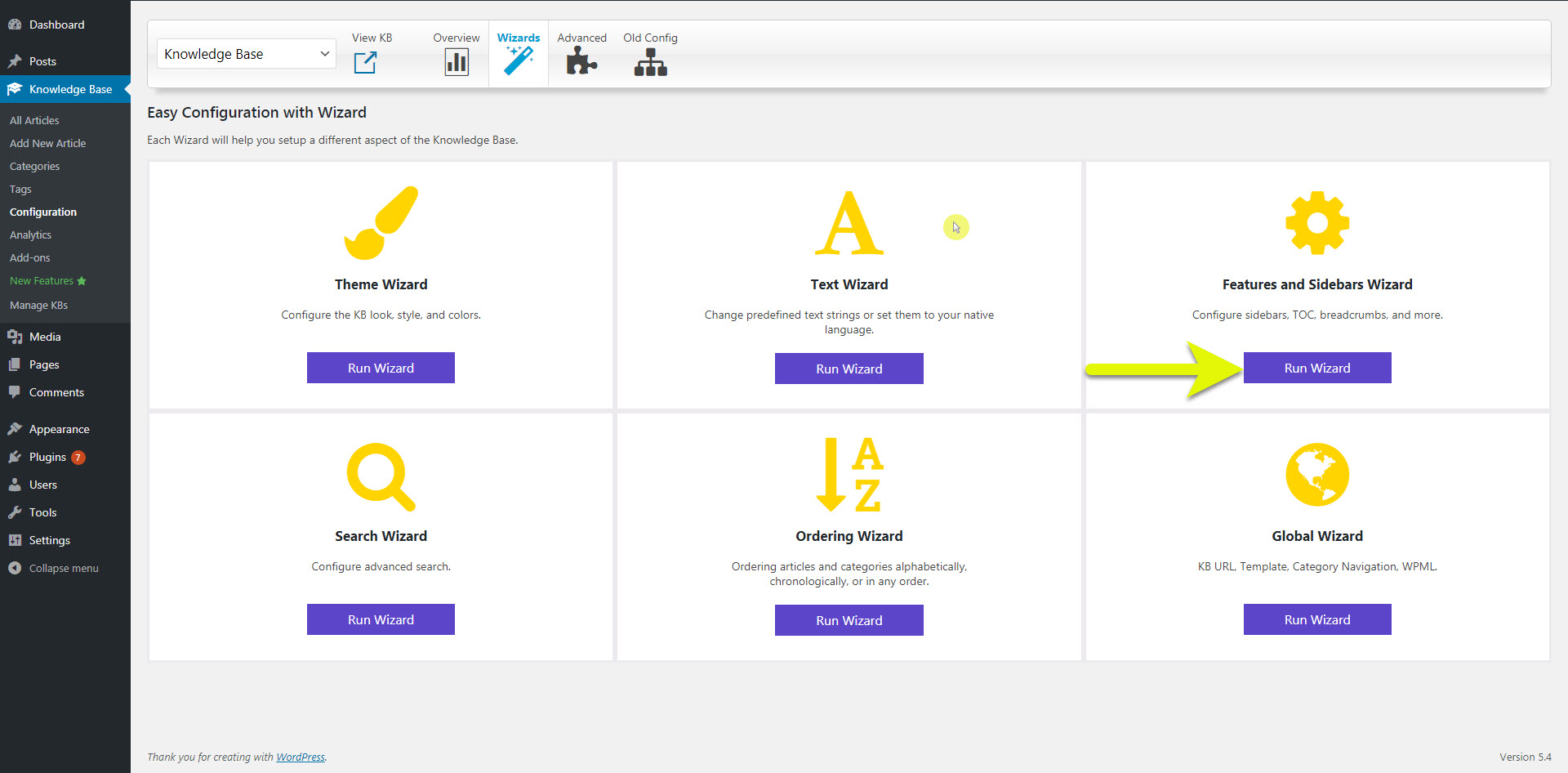

Navigate to the Features Wizard

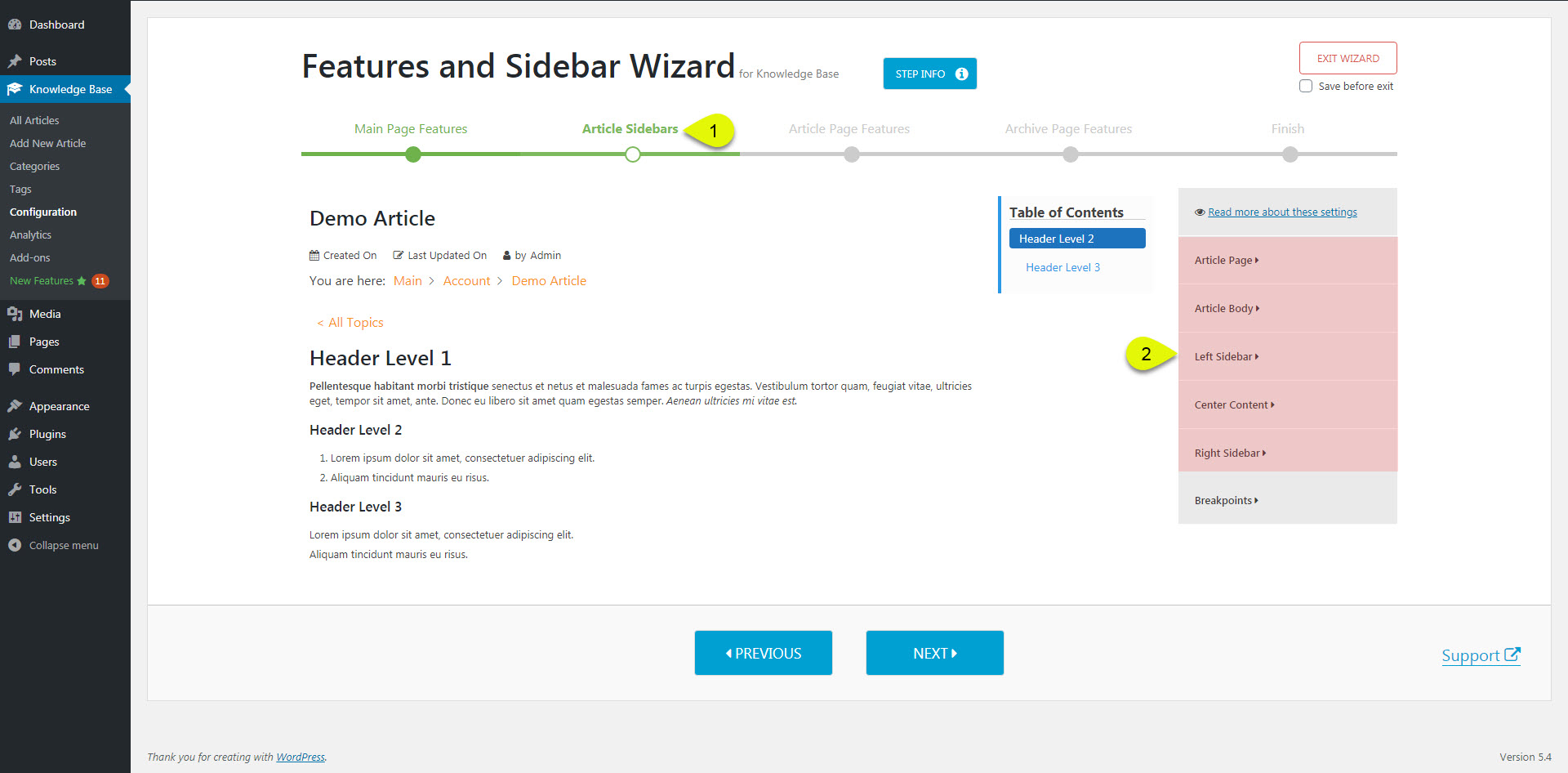

Features and Sidebar Wizard - Article Sidebars Step
On the Articles Sidebars step, you will see new settings to control your widths. See #2 in the screenshot below.
Width Settings
Here is the breakdown of the article widths and what elements they control.
Article Page - Width
With controls the whole article page. This will control the inner content and how much it can expand. If you set this to 100% the Header and Footer will go to the edges of the website.
Article Body - Width
Left Sidebar - Width
The Left Sidebar width is a percentage based value. For example if you set it to 20%. Then it’s 20% of the article Body total width. Please note: The Left Sidebar , Center Content and Right sidebar must equal 100% in total.
With controls the sidebars and center content max width. If you set this to 1080px for example and keep the Article Page width at 100%, you will get the effect of having a full Width Search bar but a centered article.
Center Content -Width
The Center Content width is a percentage based value. For example if you set it to 60%. Then it’s 60% of the article Body total width. Please note: The Left Sidebar , Center Content and Right sidebar must equal 100% in total.
Right Sidebar - Width
The Left Sidebar width is a percentage based value. For example if you set it to 20%. Then it’s 20% of the article Body total width. Please note: The Left Sidebar , Center Content and Right sidebar must equal 100% in total.

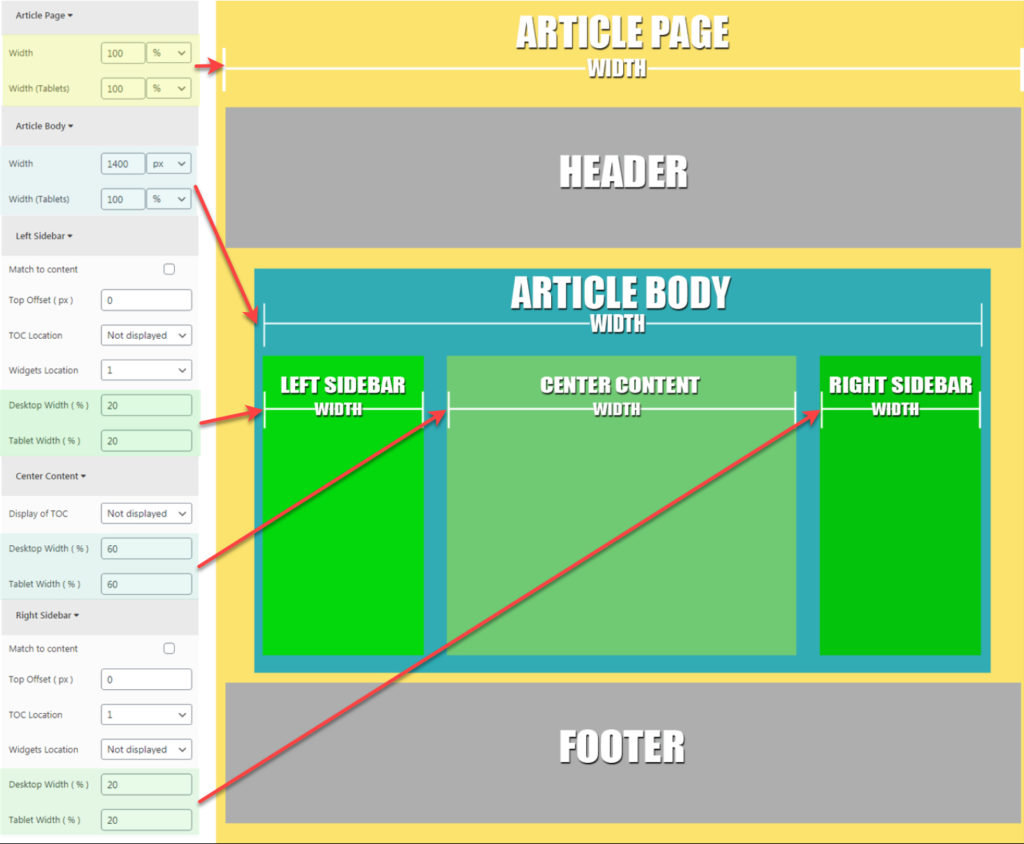

Example Article with Labels
In this screenshot example, shows two sidebars and the center content. With labels on top to demonstrate the locations of the elements relative to a real article.
Common questions or issues with article pages.
Sometimes there are certain scenarios where the layout isn’t just right. Click here to go to the common questions article.
